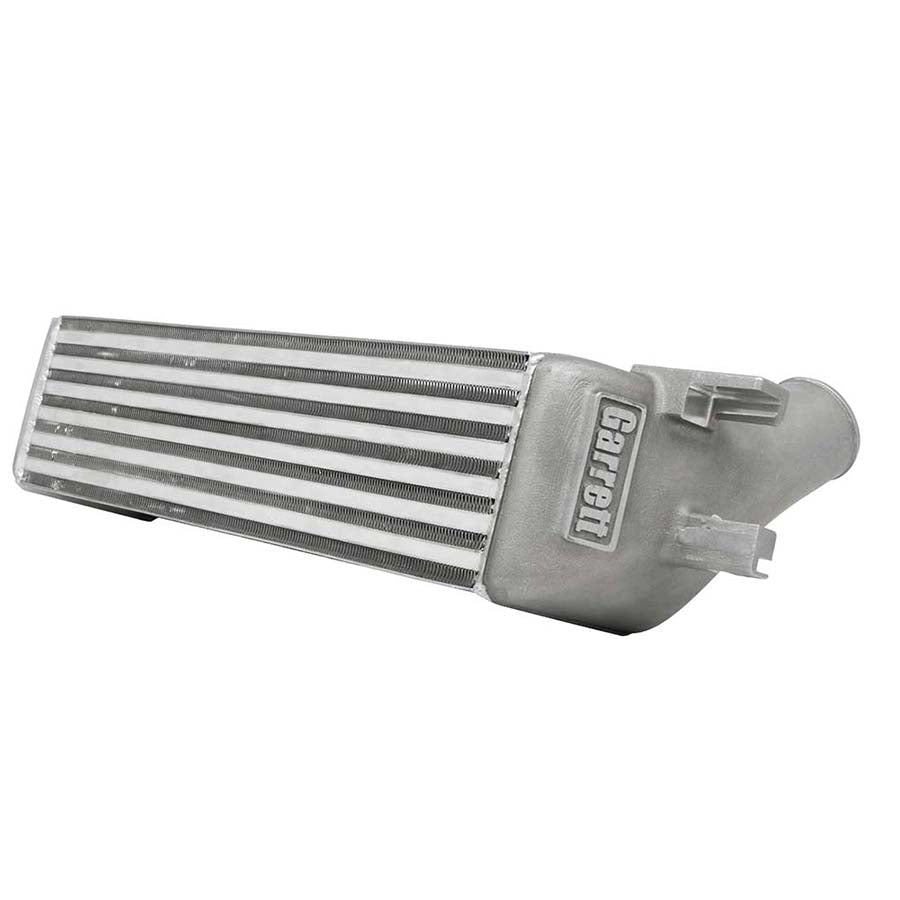

Ford Mustang 2.3L EcoBoost | 2015 - 2022 | Garrett | PowerMax Intercooler

Regular price £525.91 GBP ex vat
Contact Us Find a Dealer

Product details

  • Type Vehicle Specific Intercooler
  • Vendor Garrett Motion
  • SKU 857564-6001
  • Supported Horsepower 600 HP
  • Core Length 533.4 mm / 21.0 in
  • Core Width 135.1 mm / 5.3 in
  • Core Height 146.1 mm / 5.8 in
  • Installation Time 150 min

Elevate the cooling efficiency and performance of your 2015+ 2.3L EcoBoost Mustang with the Garrett PowerMax Intercooler, capable of supporting up to 600 horsepower. This intercooler integrates seamlessly into the stock location, utilizing advanced technologies to maximize cooling efficiency and engine performance.

Key Features:

  • High Capacity: Engineered for up to 600 horsepower.
  • Superior Cooling Technology: Features an aluminum core with advanced offset fin design and vacuum brazed bar-and-plate construction, achieving optimal heat dissipation and thermal fatigue resistance.
  • Enhanced Core Size: 60% larger than stock, providing more surface area for effective heat exchange.
  • Efficient Temperature Reduction: Delivers up to a 40-degree reduction in inlet temperatures.
  • Pressure Drop Optimization: Achieves up to a 30% reduction in pressure drop.
  • Robust Construction: TIG welded and CFD optimized cast aluminum end tanks for streamlined airflow and durability.
  • Secure Fit: Elongated inlet and outlet ports enhance hose attachment security for high-performance applications.

Technical Improvements and Testing Insights:

  • Superior Fatigue Performance: The larger core and innovative construction techniques significantly enhance the intercooler's ability to withstand high temperatures and pressures, resulting in superior fatigue performance.
  • Proven Effectiveness: In back-to-back dyno tests simulating on-track conditions, the Garrett intercooler demonstrated excellent thermal management. While the OE intercooler reached a maximum outlet temperature of 183 degrees during its fourth pull, the Garrett intercooler maintained lower temperatures for longer, only reaching 154 degrees after nine pulls.
  • Enhanced Horsepower at Heat Saturation: Tests show that under full heat saturation conditions, the Garrett intercooler helped the engine produce 237 HP at 4891 RPM, compared to 216 HP at 5000 RPM with the OE intercooler.

Ease of Installation:

  • This upgrade is designed for a straightforward installation process that takes approximately two and a half hours using basic hand tools, reusing factory hoses, clamps, and bolts. The design ensures compatibility with both OEM hoses and aftermarket charge pipes, providing a reliable upgrade that enhances performance without the risk of detachment.

Experience a noticeable improvement in performance with the Garrett PowerMax intercooler, specifically tailored for the high demands of the 2.3L EcoBoost Mustang. Upgrade today and push your Mustang to new levels of efficiency and power.

    Garrett Motion

    Garrett Motion stands at the forefront of turbocharging and intercooling technologies, demonstrating dual expertise with precision-engineered solutions that enhance vehicle performance worldwide. With over 70 years of engineering excellence, Garrett has profoundly shaped the automotive industry by setting the standard for power, efficiency, and reliability. Known for their advanced turbochargers that boost engine efficiency and power through cutting-edge technology, and superior intercoolers that manage heat to significantly improve thermal efficiency by cooling intake air, Garrett ensures optimal performance across a wide range of applications. As a proud UK supplier, PERON Automotive delivers Garrett’s leading-edge turbocharging and intercooling solutions to automotive enthusiasts and professionals, offering top-tier performance enhancements designed to meet the rigorous demands of the most discerning drivers.
